LPG Hose With Connectors
Classification:
LPG Hose
Keywords:
LPG Hose With Connectors
Quick Overview：
Description

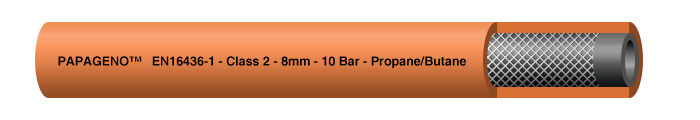

LPG Hose
Tube: Chemical resistance PVC
Reinforcement: High strength polyester yarn
Cover: Anti Abrasion and UV protection PVC material.
Surface: Smooth/Ribbed, could be brilliant or matte.
Color: Orange cover and black tube.
Temperature Range: -10°C to 60°C
Standard: BS EN16436-1:2014+A2:2018
Certificates: EN16436, Reach, RoHS, PaHS.
Printing Example: PAPAGENO™ EN16436-1 - Class 2 - 8mm - 10 Bar - Propane/Butane - PROD DATE: 2022
Applications: For LP Gas, Nature Gas, Propane and Butane, Gas Regulator, Grill, Stove, Furnace etc.
Specifications:
Part No. | I.D.(mm) | O.D.(mm) | W.P. (Bar) | B. P. (Bar) | Length (M/Roll) |
GNLPG0512 | 5.0 | 12 | 10 | 30 | 100 |
GNLPG6313 | 6.3 | 13.3 | 10 | 30 | 100 |
GNLPG0814 | 8.0 | 14 | 10 | 30 | 100 |
GNLPG0815 | 8.0 | 15 | 10 | 30 | 100 |
GNLPG0916 | 9.0 | 16 | 10 | 30 | 100 |
GNLPG1017 | 10.0 | 17 | 10 | 30 | 100 |
GNLPG1020 | 10.0 | 20 | 10 | 30 | 100 |
GNLPG1021 | 10.5 | 21.5 | 10 | 30 | 100 |
GNLPG1224 | 12.0 | 24.5 | 10 | 30 | 100 |
